Berg Hortimotive

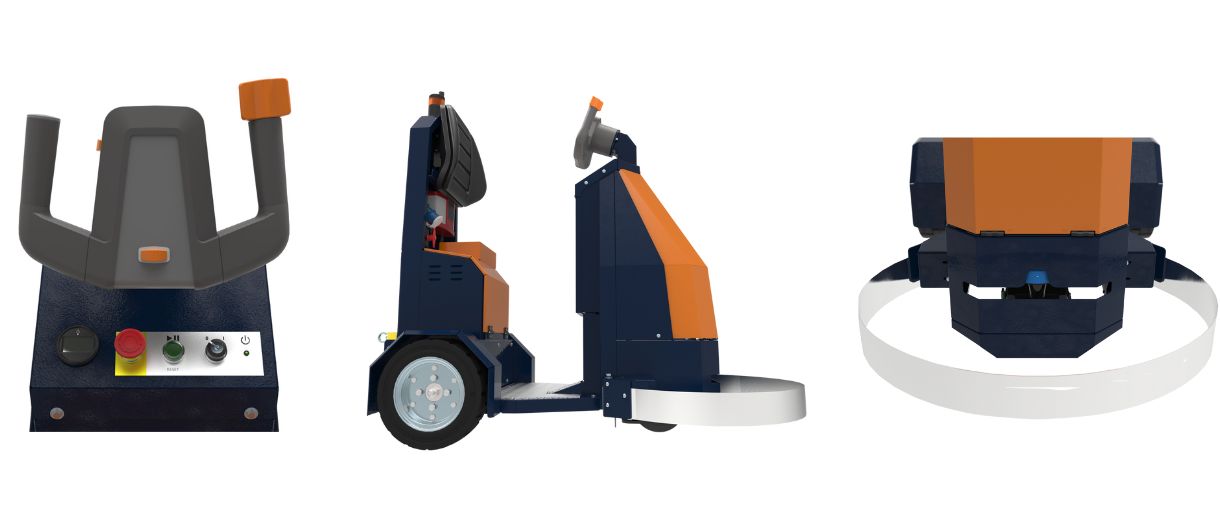

BeTrac Electric tow tractor

The BeTrac Electric tow tractor can be used with manual control or unmanned to run the harvesting trolley from the greenhouse to the processing area and back. The BeTrac Electric tow tractor is characterised by its versatility and user-friendliness.

Manual
With its low step and simple controls, the BeTrac Electric tow tractor is convenient for manual use. Moreover, the BeTrac Electric tow tractor is environmentally friendly, noiseless and extremely manoeuvrable.

Automatic
The BeTrac can be manually or automatically controlled. By means of induction technology, the BeTrac Electric tow tractor runs autonomously through an unloading unit, so that the harvesting trolleys can be individually unloaded at the right positions.
Built-in sensors prevent collisions or dangerous situations.

Induction control
Berg Hortimotive has its own in-house induction specialists who can design and lay any induction route between the greenhouse and the shed. One or more tractors can also be controlled using a central control with visualization software, so that you always know where your tractors are.



Technical specifications BeTrac electric tow truck
 BeTrac1 AGVBeTrac2 ManualBeTrac4 Manual
Length [cm]147150160
Width [cm]709093
Height [cm]143125133
Drive motor [kW]1,223,5
Towing capacity [kg/N]235/2350220/2200415/4150
Speed unloaded [km/u]3,6 / 10,5* 12 14
Speed loaded [km/u]3,6 / 6 *
Slope unloaded [%]61012
Slope loaded [%]254
Weight [kg]375 600 740
Turning radius [cm]210 / 250* 190 190
Traction battery [V/Ah]24/18024/25024/325
Tires (black)solidairair
* depending on the operating method
